Solution Builder API
Configure the Custom Uploader

17min
Overview
For background information, see Custom Uploader﻿.
If you want to create a Custom Uploader, then please Contact Sales to obtain the source files that you will need.
This document describes how you can configure your personalized Custom Uploader.  This allows you to use a reserved area of the ScreenPal Solution Builder Upload UI panel to insert your custom UI.  You create the UI using the Java programming language (not JavaScript).

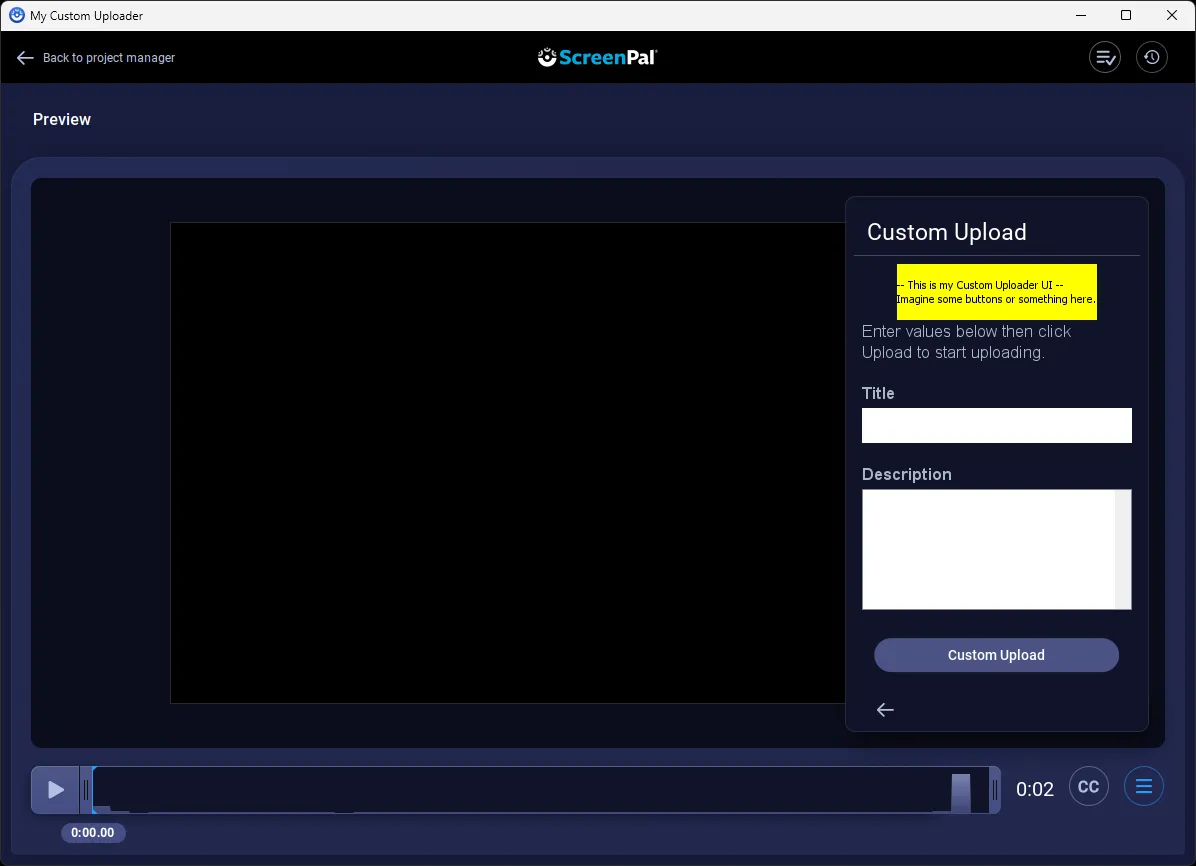

In this screenshot, the yellow rectangle is the area where your custom Java user interface would appear.
﻿
﻿
Your custom user interface can be used to add additional customer entered information that is delivered in the POST to the upload URL.
Creating a Custom Uploader
Create a Java source file, such as CustomPublishImpl.java, that implements the com.screencastomatic.custompublish.CustomPublish interface.  For example:
Java
package test.custompublish;

import com.screencastomatic.CustomPublishBasicUploadWithSelect;

import javax.swing.*;
import java.awt.*;

public class CustomPublishImpl extends CustomPublishBasicUploadWithSelect{
    @Override
    public JComponent create(Application application){
        JComponent superJComponent = super.create(application);
        superJComponent.setOpaque(false);
        superJComponent.setAlignmentX(Component.CENTER_ALIGNMENT);

        JComponent customUi = new JLabel("<html><br>  -- This is my Custom Uploader UI --<br>Imagine some buttons or " +
                "something here.  <br><br>");
        customUi.setOpaque(true);
        customUi.setBackground(Color.YELLOW);
        customUi.setMinimumSize(customUi.getPreferredSize());
        customUi.setMaximumSize(customUi.getPreferredSize());
        customUi.setAlignmentX(Component.CENTER_ALIGNMENT);

        JPanel result = new JPanel();
        result.setLayout(new BoxLayout(result, BoxLayout.Y_AXIS));
        result.setOpaque(false);

        result.add(customUi);
        result.add(superJComponent);

        return result;
    }
}

package test.custompublish;

import com.screencastomatic.CustomPublishBasicUploadWithSelect;

import javax.swing.*;
import java.awt.*;

public class CustomPublishImpl extends CustomPublishBasicUploadWithSelect{
    @Override
    public JComponent create(Application application){
        JComponent superJComponent = super.create(application);
        superJComponent.setOpaque(false);
        superJComponent.setAlignmentX(Component.CENTER_ALIGNMENT);

        JComponent customUi = new JLabel("<html><br>  -- This is my Custom Uploader UI --<br>Imagine some buttons or " +
                "something here.  <br><br>");
        customUi.setOpaque(true);
        customUi.setBackground(Color.YELLOW);
        customUi.setMinimumSize(customUi.getPreferredSize());
        customUi.setMaximumSize(customUi.getPreferredSize());
        customUi.setAlignmentX(Component.CENTER_ALIGNMENT);

        JPanel result = new JPanel();
        result.setLayout(new BoxLayout(result, BoxLayout.Y_AXIS));
        result.setOpaque(false);

        result.add(customUi);
        result.add(superJComponent);

        return result;
    }
}
﻿
You create a JAR file, similar to BasicUploadSkin-x.y.z.jar﻿, that replaces BasicUploadSkin-x.y.z.jar.  Inside that JAR file, you put:
The class file for your custom uploader, such as CustomPublishImpl.class.  Make sure to put it inside the required Java directory hierarchy, such as "test/custompublish/CustomPublishImpl.class" for the example source file above's Java package.
You "appDisplay.properties" file with your customized properties.  See appDisplay.properties﻿ section for a description of the properties you can use.
Any resources you need for you custom UI, such as skin images.
Be sure to remove BasicUploadSkin-x.y.z.jar and use your custom uploader JAR, such as CustomUploadSkin-3.1.0.jar, when specifying your list of JARs that get downloaded from your JavaScript launcher properties.  See JAR File Names﻿.
Custom Uploader Properties
Below is a list of properties that you may configure from your Basic Uploader﻿ JavaScript file, and/or your CustomUploadSkin-x.y.z.jar JAR file (inside its appDisplay.properties and appDisplay_xxx.properties files.)
Localization
The ScreenPal application displays text using localization.  This means it detects the user's set language and choses a string created for that language.  It does this by having the text property being placed in a language specific file.  For example, put the "som.*.app.preview.title" property in each of the language files, with its value text set to the translated string for that language.
appDisplay.properties is used to hold properties that are for any language, such as properties that are not text messages.  appDisplay_xxx.properties files are used to hold language specific strings.
In the property list below, LOCALE is used to identify a property that you should place in a language specific appDisplay_xxx.properties file.
Filename
Language
Note
appDisplay.properties
None.
Holds non localized properties.  (No translated text.)
appDisplay_de.properties
German
﻿
appDisplay_default.properties
English
Used as the default when no other language file contains an overriden property.
appDisplay_es.properties
Spanish
﻿
appDisplay_fr.properties
French
﻿
appDisplay_it.properties
Italian
﻿
appDisplay_ja.properties
Japanese
﻿
appDisplay_pt_br.properties
Portugues (Brasil)
﻿
appDisplay_zh.properties
Chinese
﻿
The following properties can be set in the appDisplay.properties file:
﻿som.*.app.content.subdirectory﻿ - REQUIRED  LOCALE
﻿som.*.app.custompublish.class﻿ - REQUIRED﻿
﻿som.*.app.custompublish.name﻿ - REQUIRED  LOCALE
﻿som.*.app.drawandzoom.enabled﻿ - OPTIONAL﻿
﻿som.*.app.editing.enabled﻿ - OPTIONAL﻿
﻿som.*.app.frame.title﻿ - REQUIRED  LOCALE
﻿som.*.app.preview.title﻿ - REQUIRED  LOCALE
﻿som.*.app.upload.deleteafter﻿ - OPTIONAL﻿
﻿som.*.app.upload.message﻿ - REQUIRED  LOCALE
﻿som.*.app.upload.onexit.action﻿ - OPTIONAL﻿
﻿som.*.app.upload.showlink﻿ - OPTIONAL﻿
som.*.app.content.subdirectory
﻿REQUIRED  LOCALE﻿  The subdirectory to store your users’ recordings.  The subdirectory is created in the ScreenPal Application's default storage location.  For example, the user's home folder on Mac, or the user's documents folder on Windows.
Java
som.*.app.content.subdirectory=Screen Recorder
som.*.app.content.subdirectory=Screen Recorder
﻿
som.*.app.custompublish.class
﻿REQUIRED  Identifies the Java class you created that implements the CustomPublish interface.
Java
som.*.app.custompublish.class=com.screencastomatic.custompublish.CustomPublishImpl
som.*.app.custompublish.class=com.screencastomatic.custompublish.CustomPublishImpl
﻿
som.*.app.custompublish.name
﻿REQUIRED  LOCALE﻿  The text to show for your brand name.
Java
som.*.app.custompublish.name="Upload to Mybrand"
som.*.app.custompublish.name="Upload to Mybrand"
﻿
som.*.app.drawandzoom.enabled
﻿OPTIONAL  Optionally show the Show Draw & Zoom Controls button on the ScreenPal Recorder.
Java
som.*.app.drawandzoom.enabled=true
som.*.app.drawandzoom.enabled=true
﻿
som.*.app.editing.enabled
﻿OPTIONAL  Optionally show the Edit Video button on the Upload UI panel.
Java
som.*.app.editing.enabled=true
som.*.app.editing.enabled=true
﻿
som.*.app.frame.title
﻿REQUIRED  LOCALE﻿  The text to show on the ScreenPal Application titlebar.
Java
som.*.app.frame.title=Mybrand
som.*.app.frame.title=Mybrand
﻿
som.*.app.preview.title
﻿REQUIRED  LOCALE  The text to show for the title of the recording at the top of the Preview display.
Java
som.*.app.preview.title=Upload to Mybrand
som.*.app.preview.title=Upload to Mybrand
﻿
som.*.app.upload.deleteafter
﻿OPTIONAL  Specifies if the local recording should be deleted after a successful upload.
Java
som.*.app.upload.deleteafter=true
som.*.app.upload.deleteafter=true
﻿
som.*.app.upload.message
﻿REQUIRED  LOCALE﻿  The message to display after a successful upload.  The optional string, TITLE_REPLACE, will be replaced with the string you return from your CustomPublishImpl.getTitle() Java method.
Java
som.*.app.upload.message=\
<div style="font-size:17pt; text-align:left;">\
Uploaded Video:<br>\
<b>TITLE_REPLACE</b>\
<br><br>\
You can set up a custom message here and also:\
<ul>\
<li>Choose if you want to show the link below.<br><br></li>\
<li>Choose if you want to launch a url when the <b>Continue</b> button below is pressed so you can direct the user to a playback page or any other url.</li>\
</ul>\
<br>For example, this app is set to go to Screencast-O-Matic.com when you click <b>Continue</b>\
</div>
som.*.app.upload.message=\
<div style="font-size:17pt; text-align:left;">\
Uploaded Video:<br>\
<b>TITLE_REPLACE</b>\
<br><br>\
You can set up a custom message here and also:\
<ul>\
<li>Choose if you want to show the link below.<br><br></li>\
<li>Choose if you want to launch a url when the <b>Continue</b> button below is pressed so you can direct the user to a playback page or any other url.</li>\
</ul>\
<br>For example, this app is set to go to Screencast-O-Matic.com when you click <b>Continue</b>\
</div>
﻿
som.*.app.upload.onexit.action
﻿OPTIONAL  After a successful upload, a Continue button is displayed.  When clicked, a webpage will be opened to the URL you specify here.  If not specified, then no webpage is opened.  Specify gotoplayback to open the URL you returned for a successful upload via com.screencastomatic.CustomPublish.CustomUploader.Listener.done(String url).
Java
som.*.app.upload.onexit.action=http://screenpal.com/
som.*.app.upload.onexit.action=http://screenpal.com/
﻿
som.*.app.upload.showlink
﻿OPTIONAL  After a successful upload, you can choose to show UI that presents a hyperlink URL to open the video or use its Copy button to copy the URL to the clipboard.
Java
som.*.app.upload.showlink=true
som.*.app.upload.showlink=true
﻿
﻿
Filename	Language	Note
appDisplay.properties	None.	Holds non localized properties. (No translated text.)
appDisplay_de.properties	German
appDisplay_default.properties	English	Used as the default when no other language file contains an overriden property.
appDisplay_es.properties	Spanish
appDisplay_fr.properties	French
appDisplay_it.properties	Italian
appDisplay_ja.properties	Japanese
appDisplay_pt_br.properties	Portugues (Brasil)
appDisplay_zh.properties	Chinese
